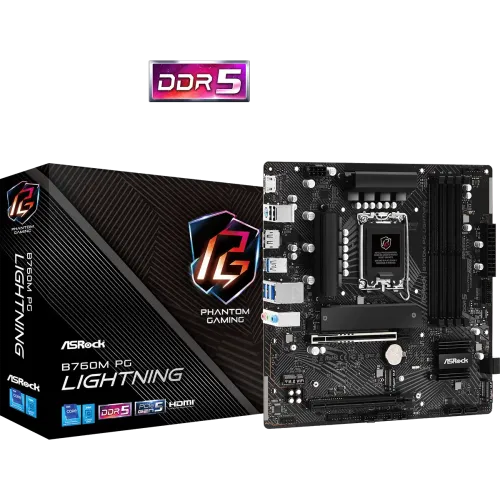

ASRock B760M PG Lightning DDR5 14th,13th,12th Gen Micro ATX Motherboard
Original price was: ৳18,300.৳16,300Current price is: ৳16,300.
Quick Overview
- Model: B760M PG Lightning
- Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 256GB 7200+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5 Gigabit LAN, 7.1 CH HD Audio
ASRock B760M PG Lightning DDR5 14th,13th,12th Gen Micro ATX Motherboard
Specification
| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) |
|
| Chipset | Intel B760 | |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire |
|
| M.2 Socket | 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DDR5 DIMM Slots | |
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Supports Intel® Extreme Memory Profile (XMP) 3.0 |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| USB (s) | 1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) |
|
| LAN Port (s) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
|
| Supported Storage | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Internal I/O Ports | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 2 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| TPM (Trusted Platform Module ) | – 1 x SPI TPM Header | |
| Others | ||
| Special Features | Superb Productivity – PCIe Gen5 (Graphics) – Dual Channel DDR5 Rock-Solid Durability – 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Ultrafast Connectivity – 2.5G LAN EZ Update – ASRock Auto Driver Installer |
|
| Bundled Software | Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Phantom Gaming LAN Software* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description
ASRock B760M PG Lightning DDR5 14th,13th,12th Gen Micro ATX Motherboard
The ASRock B760M PG Lightning DDR5 motherboard is engineered to support Intel’s latest 12th, 13th, and 14th generation Core processors, utilizing the LGA1700 socket combined with the Intel B760 chipset. Designed for gamers and power users seeking both performance and value, it offers a rich feature set within a compact Micro-ATX form factor. Power delivery is handled through a robust 7+1+1 phase design with Dr.MOS technology, ensuring stable and efficient voltage supply to the CPU and integrated graphics, which is crucial for maintaining system stability during demanding workloads or overclocking. Memory support includes four DDR5 DIMM slots capable of accommodating up to 256GB of RAM, with speeds reaching up to 7200MHz when overclocked. The board’s compatibility with Intel’s Extreme Memory Profile (XMP) 3.0 allows for straightforward memory tuning, optimizing system responsiveness and multitasking efficiency. Storage flexibility is a highlight, featuring three M.2 slots that support PCIe Gen4x4 NVMe SSDs for ultra-fast data access and four SATA III ports for additional drives or RAID configurations. Users can take advantage of RAID levels 0, 1, 5, and 10 to tailor storage performance or redundancy according to their needs. Connectivity is comprehensive, with a 2.5Gbps Dragon LAN port that delivers fast and reliable wired networking suitable for gaming, streaming, and large file transfers. The rear I/O includes a variety of USB ports, including USB 3.2 Gen1 Type-C and Type-A options, providing versatile connectivity for peripherals and external storage. Display outputs feature HDMI and DisplayPort connections, enabling support for Intel’s integrated Xe Graphics and facilitating multi-monitor setups.
ASRock B760M PG Lightning DDR5 14th,13th,12th Gen Micro ATX Motherboard Price in BD
The Best price of a ASRock B760M PG Lightning DDR5 14th,13th,12th Gen Micro ATX Motherboard is 16,300 TK. you can visit Our showroom( Suvastu Arcade ICT Bhaban, Shop: 04,05( Ground Floor), 46-48 New Elephant Road, Dhaka-1205 ) and Join Our Facebook Page.
