Abit H61M VH Motherboard Support Intel 3rd generation processor
Specification
| Basic Information | |
| Brand | Abit |
| Model | H61M VH |
| CPU | |
| Chipset Brand | INTEL H61 |
| Sockets Supported | LGA1155 |
| Supported CPU | Support Intel 3rd generation Core processors |
| Memory Support | |
| Optane Memory Support | Yes |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Type | DDR3 |
| Memory MHz | Supports 1066/1333/1600MHz |
| Storage | |
| SATA Interface | 3 SATA2.0 |
| Front Pin | 2 front USB2.0 pins |
| Slots | |
| Slots | 1*PCIE 2.0 X16 graphics card slot 1*M.2 NVME/NGFF slot 1*PCI-E X1 slot |
| Audio | |
| Audio Chipset | REALTEK ALC662 |
| Audio Channel | 5.1 channel sound card |
| Ports | |

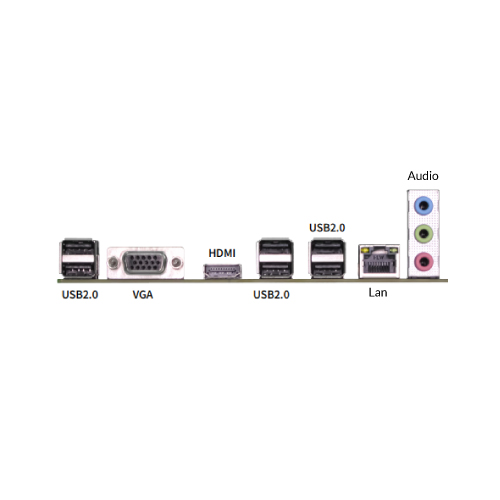

| Rear IO | 1*RJ45 network interface 3*audio interface Rear USB2.0*6 |
| Display output | HDMI+VGA |
| Technical Information | |
| Warranty | 3 Years |
